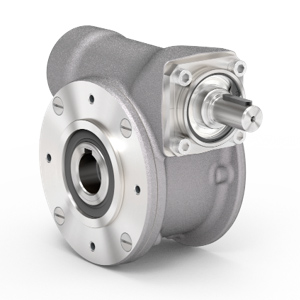

DMC Series Gearboxes
Aluminum, Right-Angle Gearboxes in a Round Housing
Features & Options
Vacuum Impregnated Housing
Single-piece, aluminum-alloy vacuum impregnated housing MIL-STD276.
Hardened and Ground Worm
Hardened and finish-ground worm with noise-reducing tooth geometry.

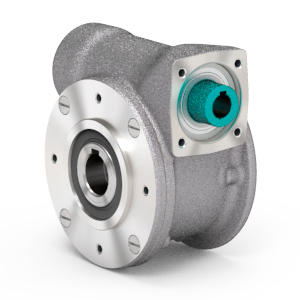

Modular Input Coupling
- Direct couple to motor shaft
- Self-aligning
- No set screws
Hardened and Finish-Ground Worm
Cast-iron hollow shaft. CuSn12Ni (C91700), Nickel-bronze worm gear for superior life. Stainless-steel hollow shaft in AISI 316L available as an option
NBR Seals
NBR seals on hollow output bore.
Viton Seals
Single Viton seals for harsh environments
Twin Viton Seals
With AISI 36L stainless steel protective cover for IP69K
Components & Accessories
- Carbon-steel input and output shafts

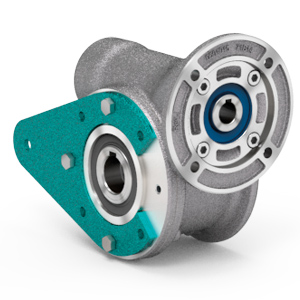

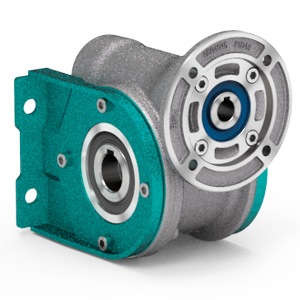

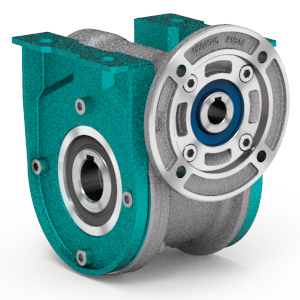

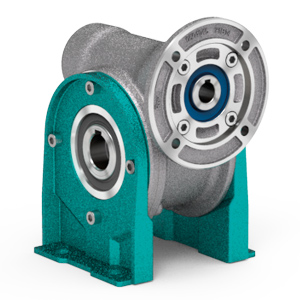

- Zinc-plated base kit mounting screws and torque arms

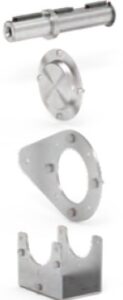

Stainless Steel
AISI 316L stainless-steel input and output shafts, protective covers, base kits, base kit mounting screws, and torque arms.
Size | Output Torque | Center Distance | Input Horsepower | Hollow Output Bore Size |
|---|---|---|---|---|
DMC30* | 21Nm | 30mm | 0.09 – 0.18kW | 14mm ø |
DMC177 | 345 lb-ins | 1.772″ | 0.25 – 1 HP | 0.750″ ø |
DMC197 | 611 lb-ins | 1.969″ | 0.25 – 2 HP | 1.000″ ø |
DMC248 | 1240 lb-ins | 2.480″ | 0.5 – 2 HP | 1.125″ ø |
DMC335 | 2921 lb-ins | 3.346″ | 1 – 5 HP | 1.500″ ø |
*DMC30 Available in Metric Only
