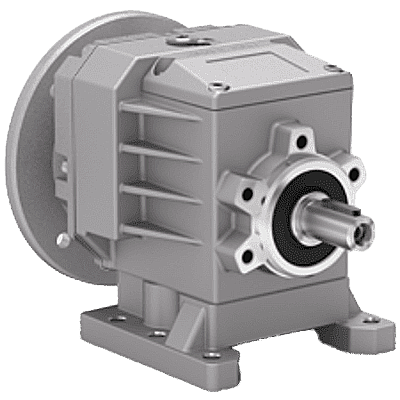

DIL Aluminum Series Gearboxes
Inline, Helical-Bevel Gearboxes
Features & Options
Sizes & Ratings
Ratios
Output Diameters
Motor Flanges
Interchanges
Size | Output Torque* | Input Horsepower |
|---|---|---|
302 | 294 – 1001 lb-ins | 0.33 – 2.00 HP |
412 | 708 – 1460 lb-ins | 0.50 – 2.00 HP |
413 | 1416 – 1549 lb-ins | 0.25 – 0.75 HP |
512 | 1331 – 3091 lb-ins | 1.00 – 5.00 HP |
513 | 2189 – 3091 lb-ins | 0.25 – 1.50 HP |
612 | 1631 – 4550 lb-ins | 1.50 – 5.00 HP |
613 | 3726 – 4550 lb-ins | 0.25 – 2.00 HP |
*With Service Factor Included
