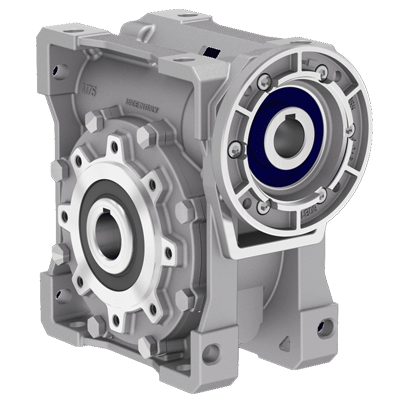

DELTA³ DGQ Series Gearboxes
Aluminum, Right-Angle Gearboxes in a Square Housing
Features & Options
MIL-STD 276 for maximum protection and sealing. No secondary finish required; finish readily accepts paint. Combines light weight with high tensile strength. Precision machined for alignment of bearings and gearing.
High helix angle worm is case-hardened (Rc 58-60), ground, teeth are finish ground, profiled, and radiused for noise reduction and enhanced efficiency.
Support positively-retained, high-speed shaft for higher shock load capacity – ideal for frequen starting and reversing applications. Premium, Nitrile® high-temperature seals on each end.

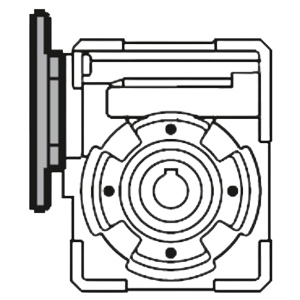

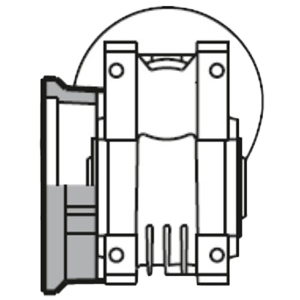

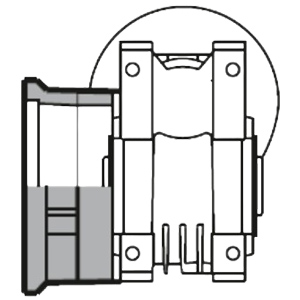

Fully modular IEC and NEMA frame input flanges.
Nitrile® output seals.
Centrifugally cast onto an iron hub for maximum strength and superior life.
For enhanced radial load capability and maximum hollow output shaft diameter.
Reduces total envelope drive size, weight, and cost. Available with a single solid output shaft or double solid output shafts.
With exterior machined surfaces provide a variety of mountin options for accessories. Extra-deep thread engagement provides greater support strength. Zinc plated hardware.
Size | Output Torque | Center Distance | Input Horsepower | Hollow Output Bore Size |
|---|---|---|---|---|
DGQ177 | 416 lb-ins | 1.772″ | 0.25 – 1 HP | 0.750″ ø |
DGQ197 | 779 lb-ins | 1.969″ | 0.25 – 2 HP | 1.000″ ø |
DGQ248* | 1416 lb-ins | 2.480″ | 0.5 – 2 HP | 1.125″ ø |
DGQ335 | 3222 lb-ins | 3.346″ | 1 – 5 HP | 1.500″ ø |
*DGQ248 Available with 1.250″ Hollow Output Shaft on Request
